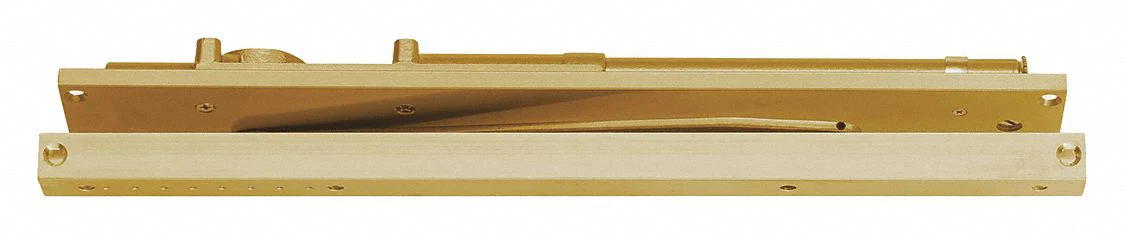

Concealed Heavy Duty Door Closer
The LCN Concealed Heavy Duty Door Closer is designed to merge performance with aesthetics. Featuring a concealed mounting system and an elegant bronze finish, it's made from durable cast iron, ensuring it withstands even rigorous usage. Perfect for both interior and exterior doors that require a sleek, unobtrusive appearance.
Key Features:
- Concealed Design: Built into doors with the closer arm hidden, offering a clean, minimalist look.
- Grade 1 Performance: Perfect for heavy-duty applications in high-traffic areas, ensuring longevity and reliability.
- Hydraulic Operation: Provides smooth, controlled door movement, reducing wear on door hardware and components.
- Versatile Use: Suitable for both interior and exterior doors with adjustable spring tension for different door sizes.
- High-Quality Construction: Made from robust cast iron with a satin bronze finish, ensuring a professional aesthetic.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 2033-STD LH BRASS |
| Brand | LCN |
| Closer Mounting Type | Concealed |
| Closer Series | 2030 |
| Closer Stop Type | Spring |
| Closer Type | Non-Hold Open |
| Color | Yellow |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 100 ° |
| Door Opening - Minimum | 85 ° |
| Features | 1-1/8 in dia Piston |
| Finish | Bronze |
| Housing Depth | 14 in |
| Housing Height | 1-3/8 in |
| Energy Source | Hydraulic |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Product Type | Door Closer |
| Spring Size | 5 |
| Arm Type | Track |
| Hand Orientation | Left-Handed |
| Housing Length | 22-1/2 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Satin Bronze Painted ; Cast Iron ; Yellow |
Frequently Asked Questions (FAQ):
Q: How is the LCN Door Closer installed?
A: The LCN Concealed Door Closer is installed within the door, with the arm unit hidden in the door frame for a sleek appearance. Professional installation is recommended for optimal performance.
Q: Is this door closer suitable for exterior use?
A: Yes, the closer is designed for both interior and exterior use, offering durability and reliability regardless of location.
Q: What door sizes can this product accommodate?
A: The adjustable spring tension accommodates various door sizes. Additionally, the door closer is designed to handle maximum opening angles of up to 100°.
Q: Is the door closer ADA compliant?
A: Yes, the LCN Concealed Door Closer is ADA compliant, making it suitable for buildings that require accessibility compliance.
Q: How does the hydraulic operation work?
A: The hydraulic mechanism ensures smooth and controlled door closure, minimizing the impact and noise when doors close, enhancing door longevity.
Elegance Concealed in Functionality
Transform your spaces with the exquisite design of the LCN Concealed Door Closer. Its hidden installation and sophisticated bronze finish fit seamlessly into any decor, providing functionality without sacrificing beauty. Perfect for modern minimalist designs, its invisible presence maintains the purity of your design lines. Achieve a harmonious balance of form and function, ensuring smooth door operation that complements luxurious interiors.
Elevate your door hardware with the LCN Concealed Door Closer - the perfect blend of style and function, ready to enhance your space today.
