The Story
Heavy Duty Aluminum Adjustable Door Closer

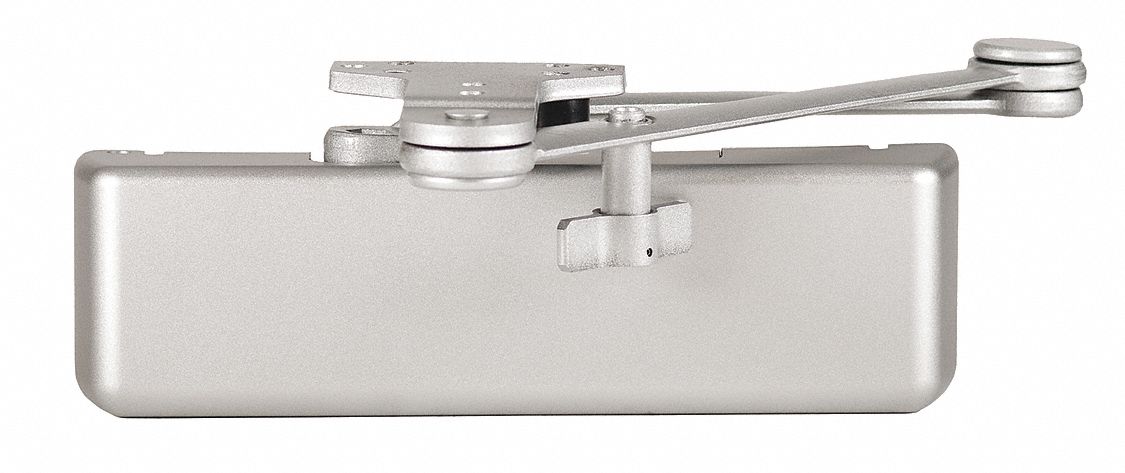

Enhance the functionality and longevity of your doors with the DORMAKABA QDC114R689 Heavy Duty Aluminum Door Closer. This versatile closer is equipped with an adjustable mount, non-handed operation, and robust hydraulic technology, making it perfect for both interior and exterior doors up to 54 inches wide. Its Grade 1 construction ensures durability and reliability for commercial applications.
Key Features:
- Adjustable Mounting: Configurable for standard, top frame, or parallel closing setup based on door swing needs.
- Heavy Duty Performance: Grade 1 rating ensures exceptional durability suitable for high-traffic commercial spaces.
- Wide Compatibility: Suitable for doors up to 54 inches wide, supporting both interior and exterior applications.
- Fire-Resistant: UL and cUL listed with a 3-hour fire rating, providing safety and peace of mind.
- Hydraulic Control: Ensures smooth operation and longevity, while the included hardware makes installation easy and efficient.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | QDC114R689 |
| Brand | DORMAKABA |
| Closer Mounting Type | Adjustable |
| Closer Series | QDC100 |
| Closer Type | Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Features | Long Term Usage |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Energy Source | Hydraulic |
| Includes | Mounting Screws |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 54 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 2-1/4 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 54 in |
| Product Type | Door Closer |
| Projection | 2-1/4 in |
| Spring Size | 6 |
| Hand Orientation | Non-Handed |
| Housing Length | 12-3/16 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | Dormakaba |
| Length Between Mounting Holes | 4 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: Can this door closer be used on outdoor doors?
A: Yes, this door closer is suitable for both interior and exterior doors up to 54 inches wide.
Q: What is the maximum door opening angle for this door closer?
A: The maximum door opening angle is 180 degrees, providing full range access when needed.
Q: Is this door closer compliant with ADA standards?
A: Yes, the DORMAKABA door closer is ADA compliant, making it suitable for use in public buildings and spaces.
Q: How does the hydraulic mechanism enhance the door closer's functionality?
A: The hydraulic mechanism provides smooth and controlled door closure, ensuring durability and less wear over time.
Q: Is installation hardware included with this door closer?
A: Yes, the necessary mounting screws and installation hardware are included.
Transforming Doorway Dynamics with Durability
The DORMAKABA Heavy Duty Aluminum Door Closer redefines doorway utility with its sleek aluminum finish and robust construction. This closer doesn't just blend seamlessly into your design; it accentuates it with its understated elegance and functionality. Imagine pairing it with polished metal frames for a sophisticated entryway that whispers strength and style. With its reliable, adjustable mounting, you're investing in a piece that’s not only essential for modern living but exudes a quiet assurance of luxury and durability.
Upgrade your door's performance and safety with the DORMAKABA Heavy Duty Adjustable Door Closer today!
