Heavy Duty Aluminum Door Closer

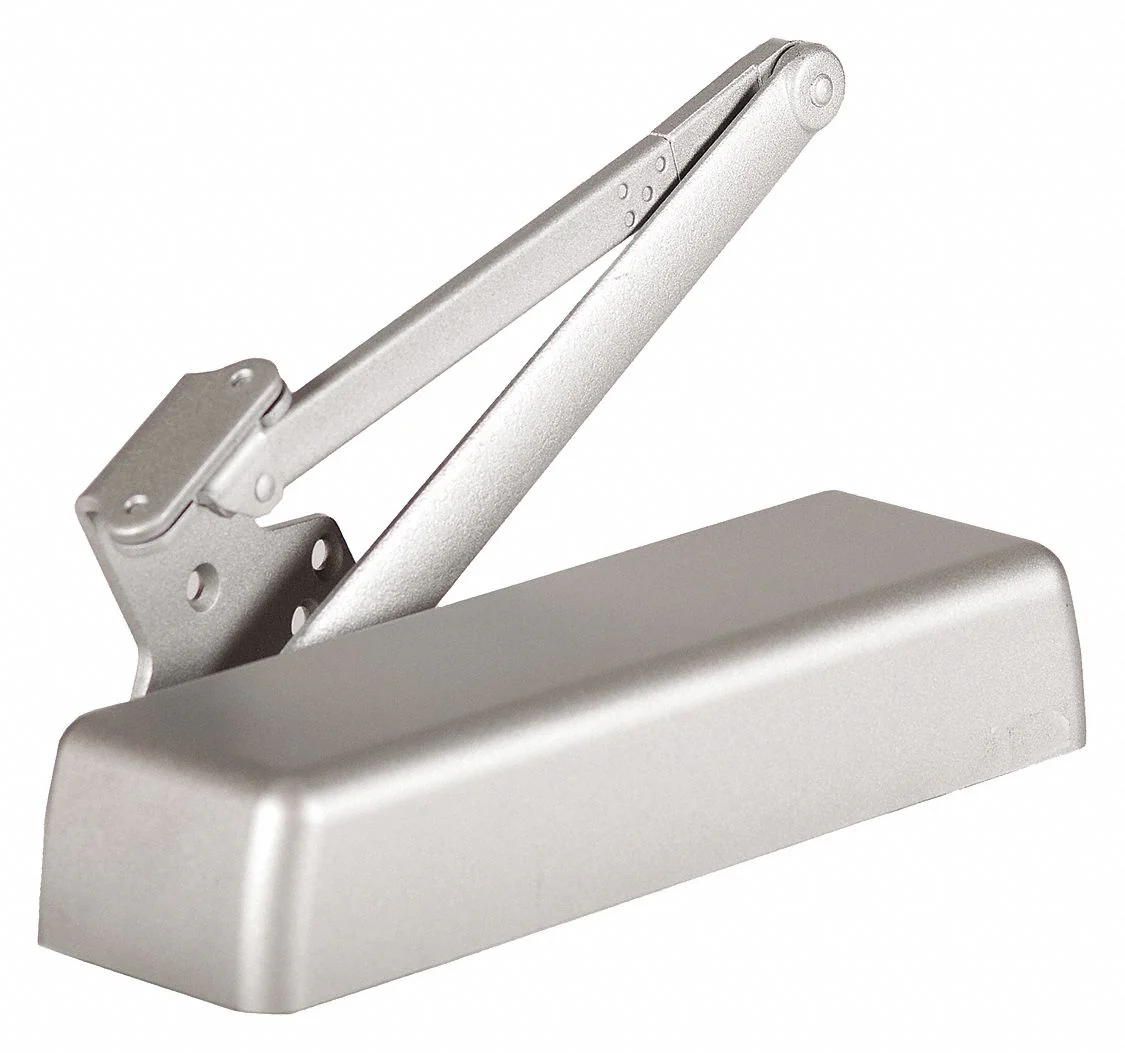

The DORMAKABA QDC111R689 Door Closer offers reliable and smooth operation for both interior and exterior doors. This heavy-duty, Grade 1 door closer ensures long-term durability with adjustable mounting options, accommodating parallel, standard, or top frame installation. Finished in aluminum, it seamlessly blends with various architectural styles while enhancing door control and safety.

---

Key Features:

• Adjustable Mounting: Configurable for standard, parallel, or top frame mounting based on door swing preference.
• Durable Construction: Made from cast iron with an aluminum finish, designed for high-traffic areas.
• Heavy Duty Performance: Grade 1 rating for rigorous use, perfect for commercial applications.
• Hydraulic Operation: Ensures smooth and controlled door closure to enhance safety.
• Fire Rated: UL and cUL listed with a 3-hour fire rating for added security and compliance.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	QDC111R689
Brand	DORMAKABA
Closer Mounting Type	Top Frame
Closer Series	QDC100
Closer Type	Non-Hold Open
Color	Gray
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	120 °
Features	Long Term Usage
Finish	Aluminum
Fire Rating	3 hr
Housing Depth	3-1/2 in
Housing Height	3-1/2 in
Energy Source	Hydraulic
Includes	Full Size Rounded Plastic Cover
Includes Hardware	Hardware Included
Door Width Campatibility	58 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10B
Spring Type	Adjustable
Height Between Mounting Holes	2-1/4 in
Spring Size - Minimum	1
Material	Cast Iron
Exterior Door Width - Maximum	54 in
Product Type	Door Closer
Projection	2-1/4 in
Spring Size	6
Hand Orientation	Non-Handed
Housing Length	12-3/16 in
Operation Style	Manual
Performance Duty Rating	1
Sub-brand	Dormakaba
Length Between Mounting Holes	4 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Aluminum Painted ; Cast Iron ; Gray

---

Frequently Asked Questions (FAQ):

Q: What mounting options are available?
A: The DORMAKABA QDC111R689 can be mounted in three different ways: standard, parallel, and top frame, allowing for flexible installation.

---

Q: Is this door closer fire-rated?
A: Yes, it is UL and cUL Listed with a 3-hour fire rating, ensuring safety in fire situations.

---

Q: What material is used to construct the door closer?
A: This door closer is crafted from durable cast iron with an aluminum finish, ideal for heavy-duty use.

---

Q: Is this door closer ADA compliant?
A: Yes, the DORMAKABA QDC111R689 is ADA compliant, suitable for accessible spaces.

---

Q: What is the maximum door width this closer can accommodate?
A: It can accommodate exterior doors up to 54 inches wide, ensuring compatibility with a variety of door sizes.

---

Elegant Closure with Enduring Strength

Transform your space with the DORMAKABA Heavy Duty Door Closer, a harmonious blend of form and function that caters to both the practical and aesthetic demands of any environment. Its sleek aluminum finish and robust build make it not only a functional piece but also a subtle statement of sophistication. Imagine it gracing the entrance of a high-traffic foyer, where its reliability and understated elegance contribute to a serene and welcoming atmosphere. This door closer is essential for those who uncompromisingly blend luxury with durability in every aspect of their living or working space.

---

Experience seamless door operation with the DORMAKABA QDC111R689—order now to enhance safety and style in your space.
