The Story

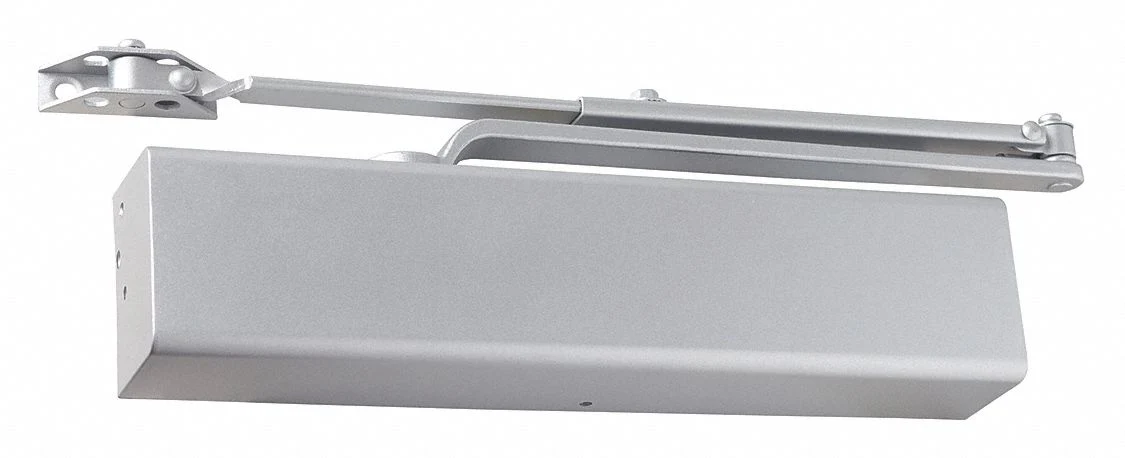

Medium Duty Aluminum Door Closer
The DEXTER Standard Mount Aluminum Door Closer is a reliable solution for medium duty applications, ensuring controlled and effortless door operation. Crafted from durable aluminum and suited for both interior and exterior use, this Grade 2 door closer is ideal for professional and DIY installations.
Key Features:
- Standard Arm Mount: Mounts on the top pull side for easy installation.
- Medium Duty Performance: Rated Grade 2, suitable for moderate traffic areas.
- Aluminum Construction: Durable with a sleek aluminum finish for a professional look.
- Hydraulic Operation: Ensures smooth, controlled door closing motion.
- Universal Fit: Adjustable features compatible with doors up to 48 inches wide.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | DCM1000-STD-FULL-RW/PA AL |
| Brand | DEXTER |
| Closer Mounting Type | Standard |
| Closer Series | DCM1000 |
| Closer Stop Type | Spring |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Finish | Aluminum |
| Housing Depth | 2-1/4 in |
| Housing Height | 2-3/4 in |
| Energy Source | Hydraulic |
| Includes | Plate Attachment |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 48 in |
| Location Use | Interior/Exterior |
| Standards | UL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/4 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Hand Orientation | Non-Handed |
| Housing Length | 12-3/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 2 |
| Length Between Mounting Holes | 12 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 2 - Medium Duty |
| Finish C | Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: How do I install the DEXTER door closer?
A: The DEXTER door closer comes with all necessary hardware and a mounting plate. An installation guide will help you mount it on the top pull side of your door easily. Professional installation is suggested for best results.
Q: Can it be used on exterior doors?
A: Yes, this door closer is suitable for both interior and exterior doors, providing reliable closing in various environments.
Q: Is this door closer ADA compliant?
A: Yes, the DEXTER Standard Mount Door Closer is ADA compliant, ensuring accessibility for all users.
Q: What door sizes is this closer compatible with?
A: The closer is adjustable for doors up to 48 inches wide, making it versatile for standard door sizes.
Q: Does it have a hold-open feature?
A: No, this door closer does not include a hold-open feature; it is a non-hold open model.
Effortless Elegance with Functional Precision
The DEXTER Standard Mount Aluminum Door Closer transforms any entryway with its understated elegance and formidable function. Its sleek aluminum silhouette integrates seamlessly into both contemporary and classic decors, making it an excellent choice for aesthetically aware spaces. Envision this closer elevating your home's sophisticated appeal, merging accessibility with impeccable design. Embrace the ideal blend of style and performance, essential for discerning homeowners who appreciate quiet luxury living.
Elevate your door's functionality and style with the DEXTER Standard Mount Door Closer—perfect for professional and home use.
